BOGE | COMPRESORES DE TORNILLO CON TRANSMISIÓN IMPULSADA POR CORREAS REFRIGERADOS POR INYECCIÓN DE ACEITE

Compresor de tornillo Serie C . CR – CD 3kw – 11Kw

Compresor de tornillo Serie C c

Serie C

Compresor de tornillo con Inyección de Aceite con transmisión impulsada por correas

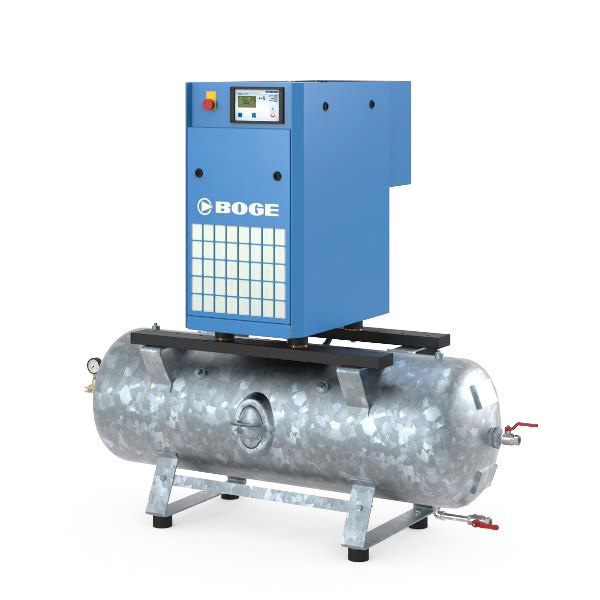

Compresor de tornillo Serie C cr

Serie C…R

Compresor de tornillo con Inyección de Aceite con transmisión impulsada por correas y Estanque.

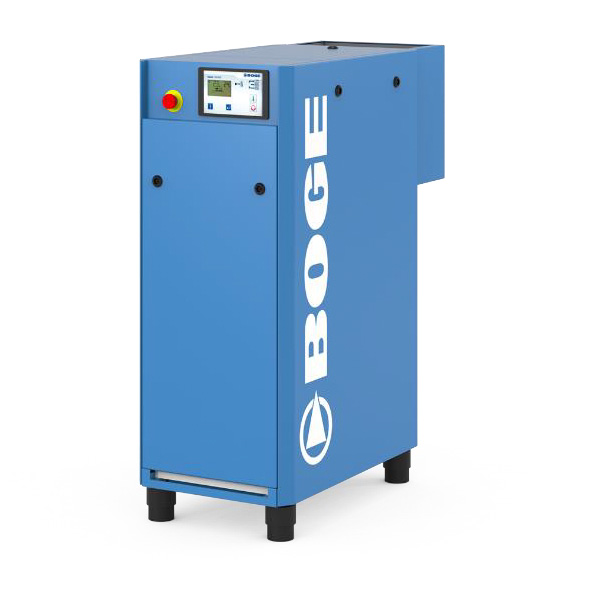

Compresor de tornillo Serie C cd

Serie C…D

Compresor de tornillo con Inyección de Aceite con transmisión impulsada por correas y Secador Frigorífico.

ESPECIFICACIONES TÉCNICAS

Serie C

Modelo 8 [barg]
[m3/min]
10 [barg]
[m3/min]
13 [barg]
[m3/min]
Potencia
[kW]
Dimensiones
[mm]
Peso
[kg]
C 4 0,43 0,34 0,22 3 480 x 907 x 955 190
C 5 0,6 0,51 0,39 4 480 x 907 x 955 195
C 7 0,85 0,74 0,58 5,5 480 x 907 x 955 210
C 9 1,18 1,06 0,87 7,5 480 x 987 x 1234 215
C 14 1,74 1,53 1,26 11 480 x 1374 x 1230 276

Serie C…R

Modelo 8 [barg]
[m3/min]
10 [barg]
[m3/min]
13 [barg]
[m3/min]
Potencia
[kW]
Dimensiones
[mm]
Peso
[kg]
C 4 R 0,43 0,34 0,22 3 1880 x 927 x 1549 345
C 5 R 0,6 0,51 0,39 4 1880 x 927 x 1549 350
C 7 R 0,85 0,74 0,58 5,5 1880 x 927 x 1549 365
C 9 R 1,18 1,06 0,87 7,5 1880 x 927 x 1549 370



Serie C…D

Modelo 8 [barg]
[m3/min]
10 [barg]
[m3/min]
13 [barg]
[m3/min]
Potencia
[kW]
Dimensiones
[mm]
Peso
[kg]
C 4 D 0,43 0,34 0,22 3 480 x 990 x 1235 210
C 5 D 0,6 0,51 0,39 4 480 x 990 x 1235 215
C 7 D 0,85 0,74 0,58 5,5 480 x 990 x 1235 230
C 9 D 1,18 1,06 0,87 7,5 480 x 990 x 1235 235

Serie C…DR

Modelo 8 [barg]
[m3/min]
10 [barg]
[m3/min]
13 [barg]
[m3/min]
Potencia
[kW]
Dimensiones
[mm]
Peso
[kg]
C 4 DR 0,43 0,34 0,22 3 880 x 927 x 1549 380
C 5 DR 0,6 0,51 0,39 4 880 x 927 x 1549 385
C 7 DR 0,85 0,74 0,58 5,5 880 x 927 x 1549 400
C 9 DR 1,18 1,06 0,87 7,5 880 x 927 x 1549 405
